About This

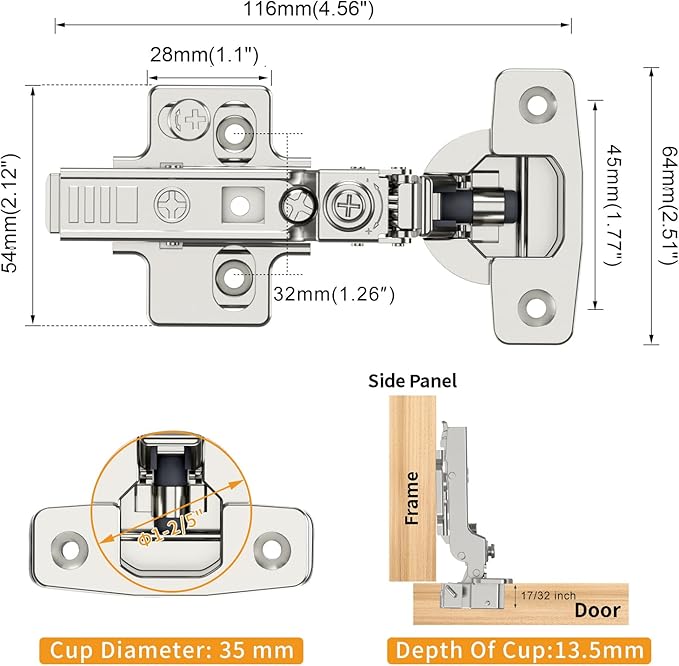

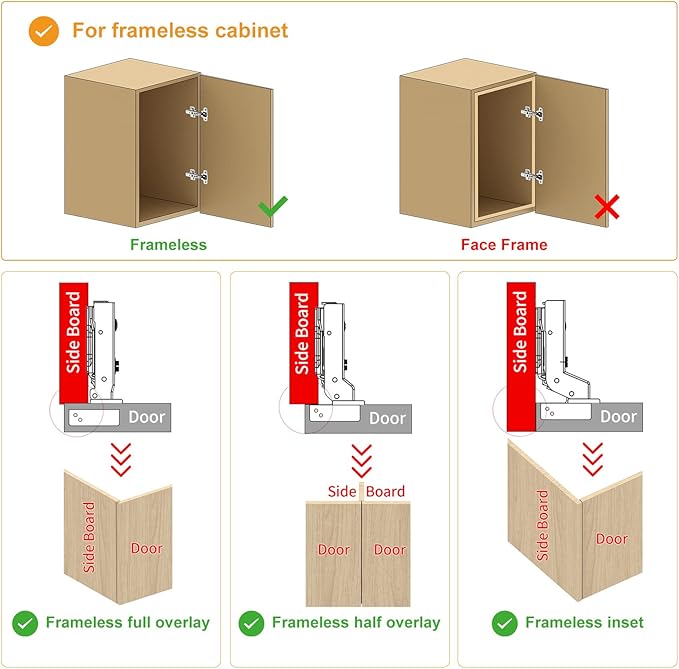

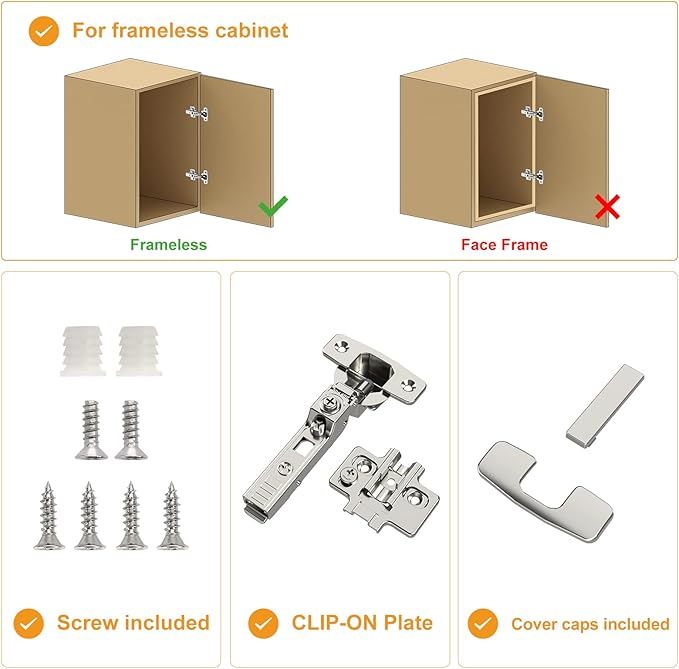

• Installation Specification: Cup depth: 13.5mm; Screw hole distance: 45mm; Opening angle: 105°; Suitable for door thickness: 14–22mm. Each hinge comes with 2 easy-on dowels and 4 self-tapping wooden screws to ensure a perfect fit, and includes 2 screw covers to conceal the screws. Designed for HALF OVERLAY (3/8") doors on frameless cabinets. Please confirm the required overlay and compatibility before purchasing
• SOFT CLOSE CABINET HINGE: Each cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges. In addition, it also supports SMALL SOFT CLOSE ANGLE, which can better protect your finger

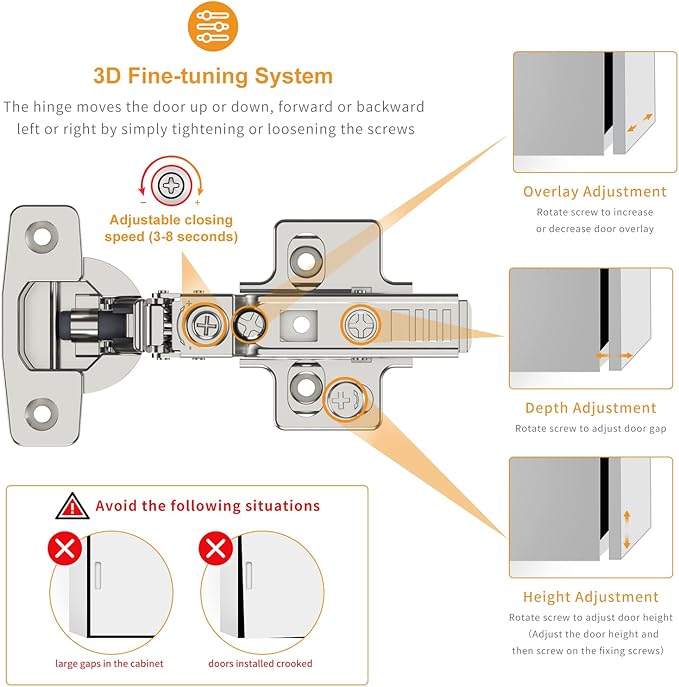

• 4D Adjustable Upgrade: 4D hinges can adjust the cabinet door just by turning a screwdriver (Vertical, Horizontal, Depth, Closing Speed), which will make sure that your new custom-made cabinet doors don't sag, align properly, and will open and close smoothly; Closing speed can be adjusted at will within 3-8s

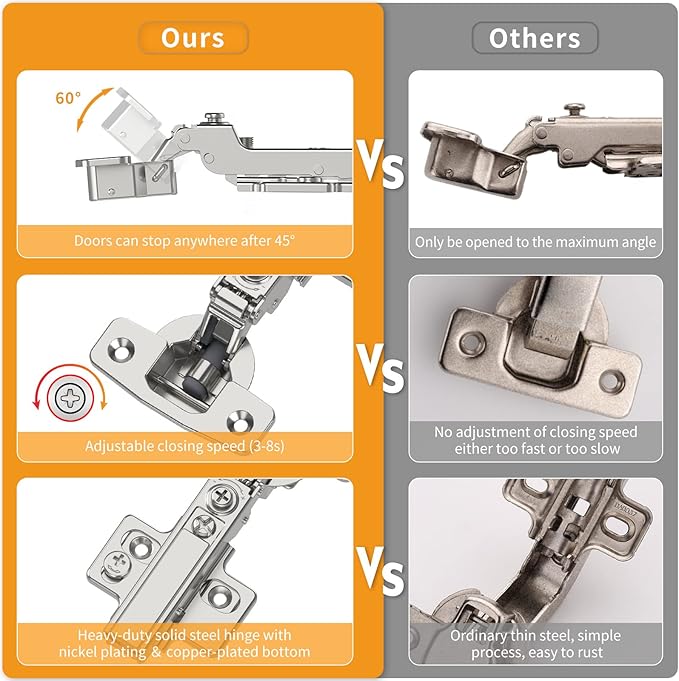

• Stop at any angle after 45°: Cabinet hinges can stop at any angle after the cabinet door is opened at an angle greater than 45°. This means that you don't need angle clips when your cabinet door is near the wall, and you can still open it at different angles according to your needs. When the opening angle is less than 45°, the cabinet door self-closing
• Buy with Confidence: Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, BHMA, KCMA, and SGS. The product can withstand more than 100,000 times of opening and closing and more than 48 hours of salt spray test. If you encounter any problems in the process of use, please feel free to contact us, we will provide the most intimate service

Overview

• Material : Stainless Steel
• Brand : Chibery
• Product Dimensions : 5.91"L x 1.77"W
• Finish Type : Nickel
• Mounting Type : Door Mount
• Hole Count : 60
• Unit Count : 10.0 Count
• Color : Satin Nickel
• Number of Items : 10
• Manufacturer : Chibery
