About This

• Features ultrasonic welding and integrated construction of the strap and body in order to provide superior integrity

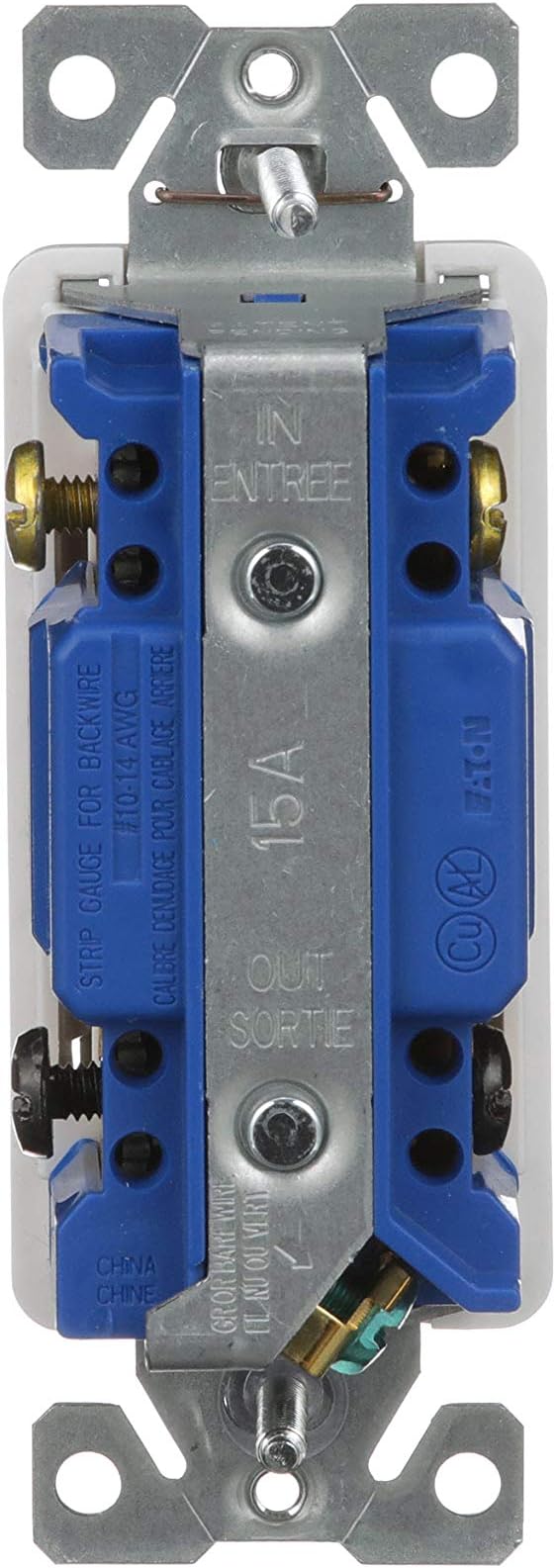

• Backwire clamps on the side terminals provide for easy installation of #12 and #14 wires
• Paddle has been designed for easier movement and quiet operation
• Thermoplastic rocker, top and backbody are virtually unbreakable, promising years of durable performance

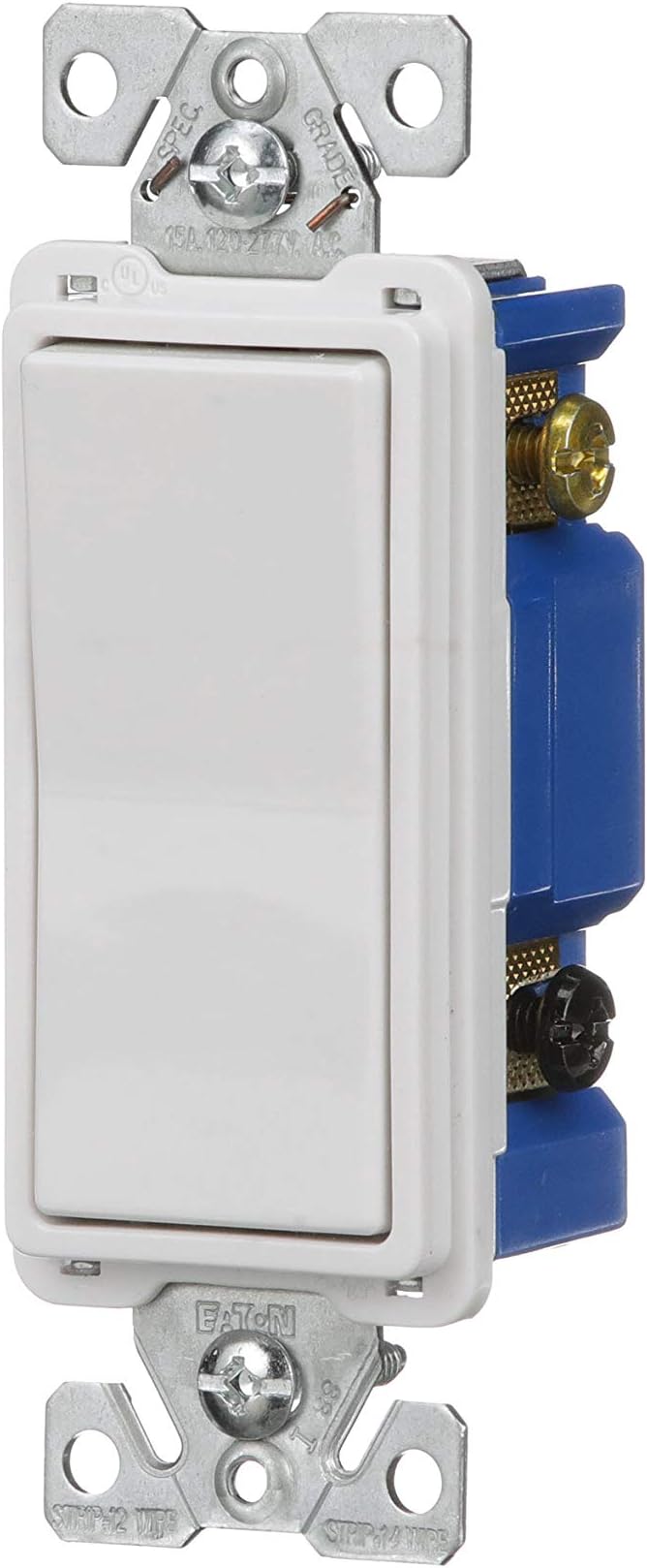

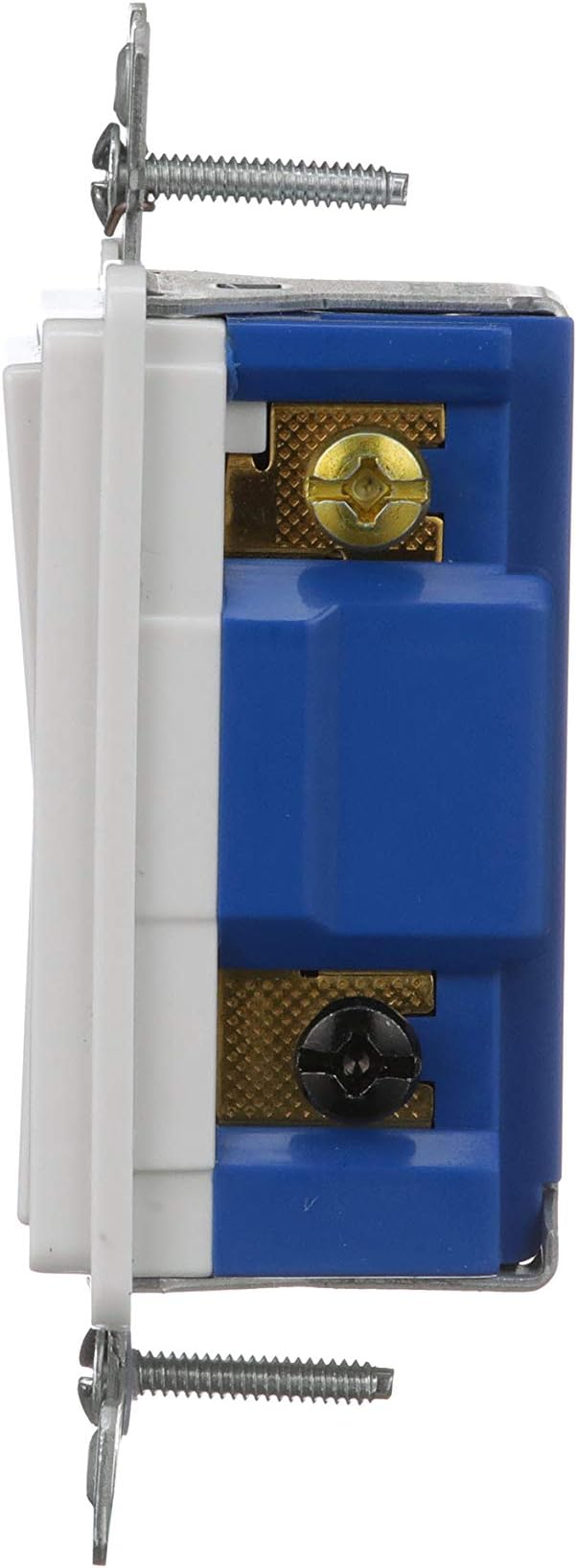

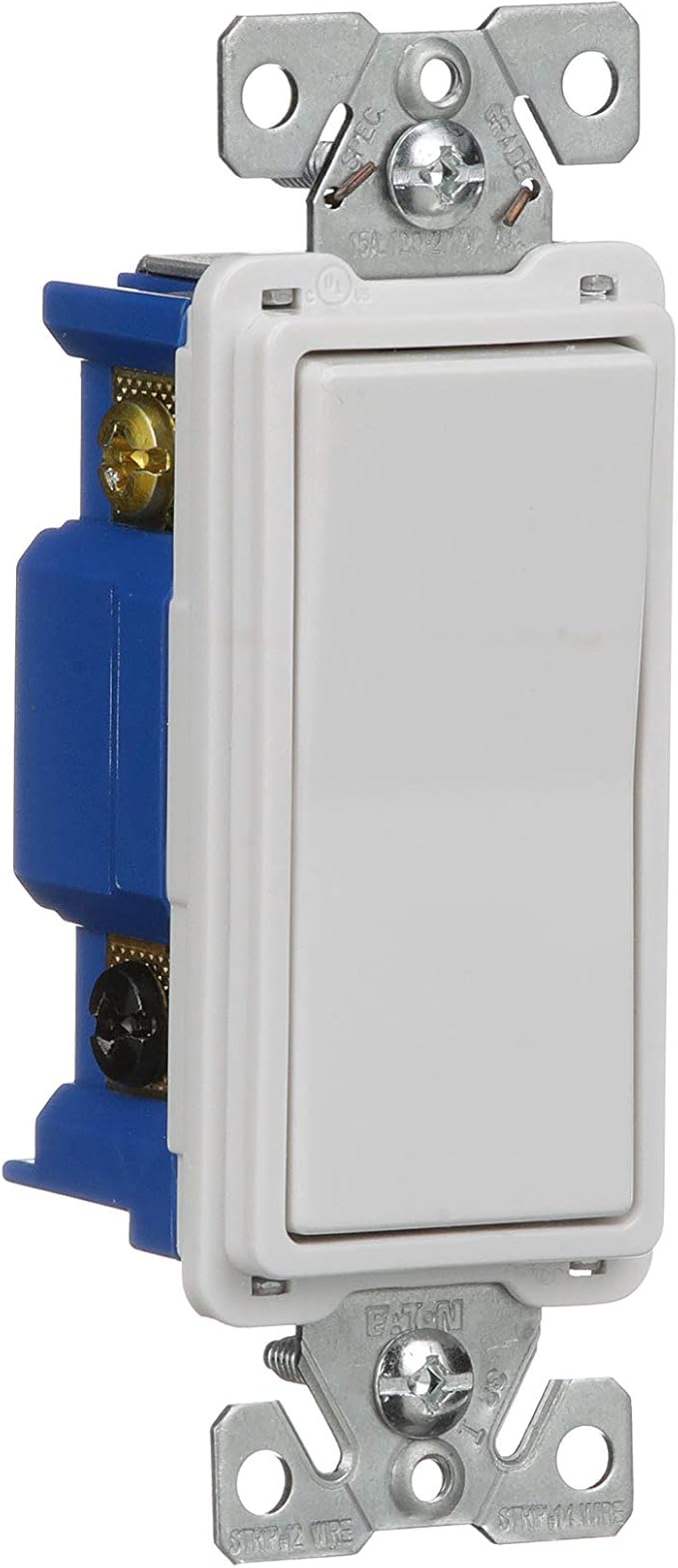

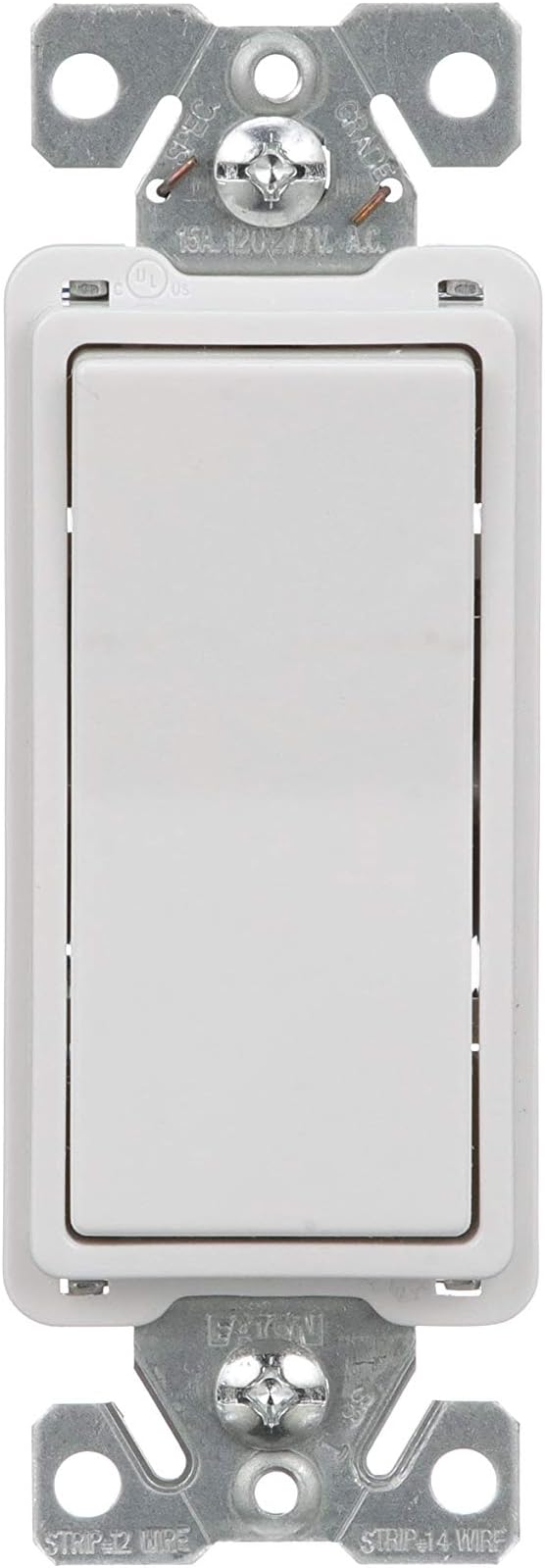

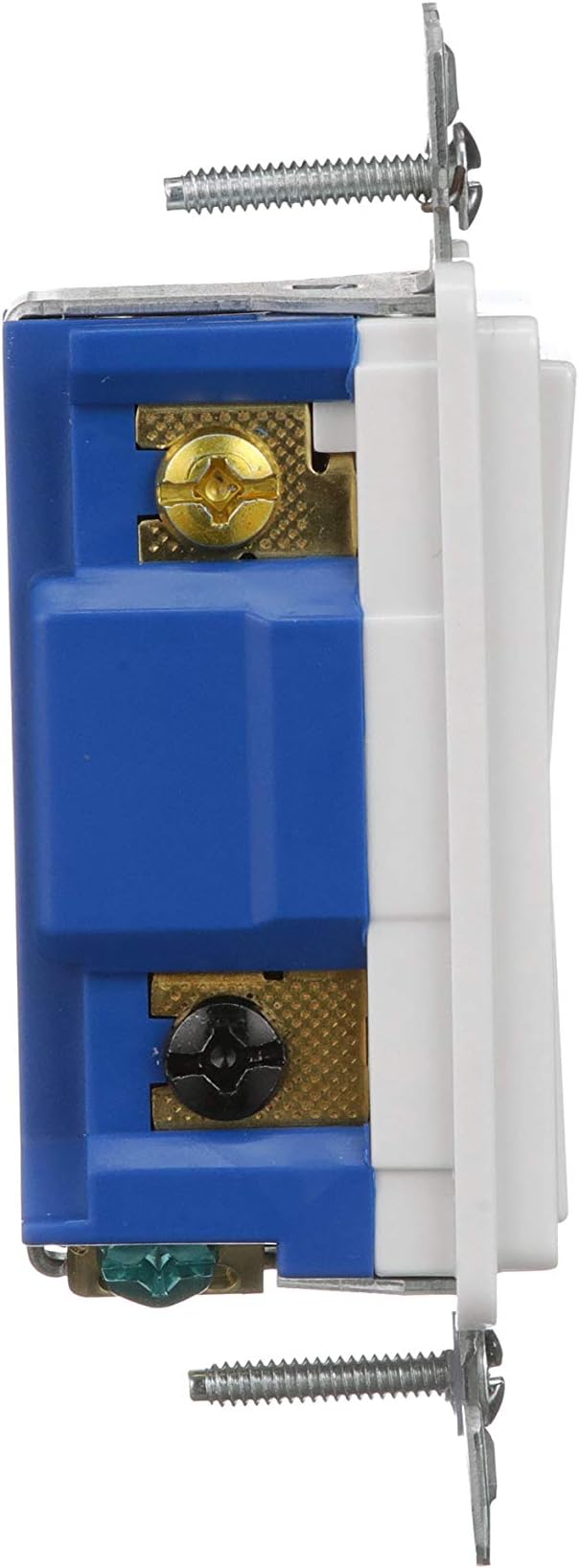

• This is standard grade 4-way decorator switch
• Patented built-in wire stripper for No.14 and No.12 wire to speed installation
• Tri-combo screws accept slotted, Phillips and robertson-head tools for installation flexibility
• Redesigned paddle for easier actuation and quiet operation, long, broad mounting strap virtually eliminates floating installations
• Available in white color, measures 1-1/6-Inch length by 1-2/5-width by 3-4/5-Inch height

Overview

• Operation Mode : ON-ON-ON-OFF
• Current Rating : 15 Amps
• Operating Voltage : 120 Volts
• Contact Type : Normally Open
• Connector Type : Screws
• Brand : Eaton
• Switch Type : Rocker
• Terminal : Screw
• Material : Thermoplastic
• Item dimensions L x W x H : 1.61 x 1.61 x 1.61 inches
